16 Feb Robust, Compact and Effective DAF Units for Food Processing Wastewater
Wastewater Treatment in Food Processing
In food processing, wastewater treatment is not optional; it is central to compliance, operational stability and responsible resource management.
Dissolved Air Flotation (DAF) units are designed to remove oil, grease, solids and/or flocs from wastewater that do not have sufficient buoyancy to float.

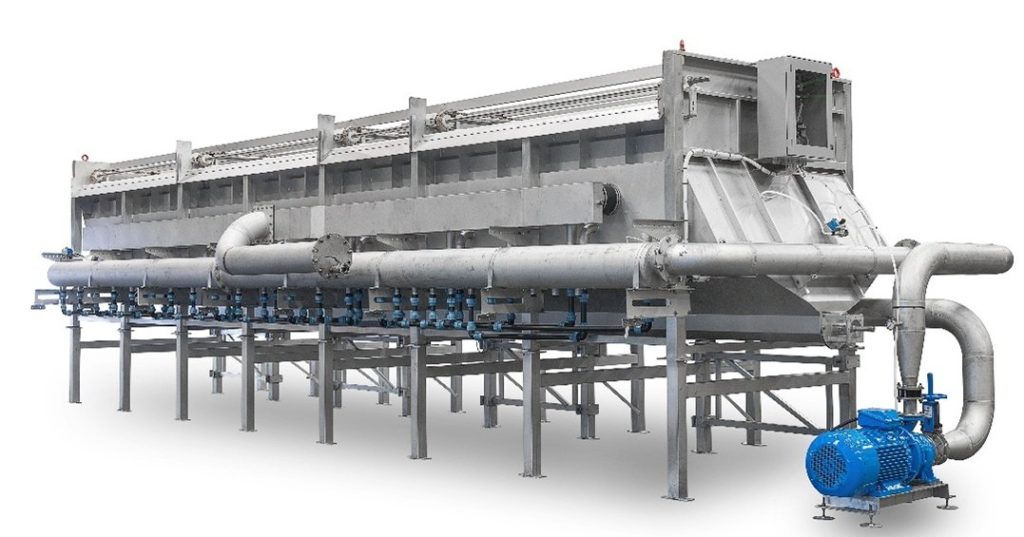

Colubris KCF Dissolved Air Flotation Unit
The KCF DAF unit is robustly built and compact, designed for treating large water flows. It removes suspended solids and other flocculated materials efficiently. It is particularly well suited to food processing applications including poultry, red meat and fish, where wastewater streams are characterised by high organic loads, elevated COD (chemical oxygen demand) levels and significant concentrations of fats, oils, grease and suspended solids.
Design and Separation Efficiency
Plate packs provide a large separation surface within the unit, resulting in optimal separation efficiency. Settling materials are removed by a stainless-steel sediment auger installed across the entire base of the unit.
Robust and compact in design, the Colubris KCF DAF features a stainless-steel tank, integrated aeration piping, large inlet and outlet connections and dedicated sediment handling components.
The entire design of the KCF series is based on avoiding hydraulic disturbances and maintaining steady laminar flow throughout the unit. The systems are equipped with a highly efficient micro-aeration system which ensures effective attachment of air bubbles to fine particles and flocs, enabling reliable removal even under challenging load conditions. In addition to floating contaminants, heavier settled solids are continuously extracted via the full-length stainless-steel sediment auger, supporting comprehensive clarification within a single integrated unit and enabling performance comparable to larger conventional systems.

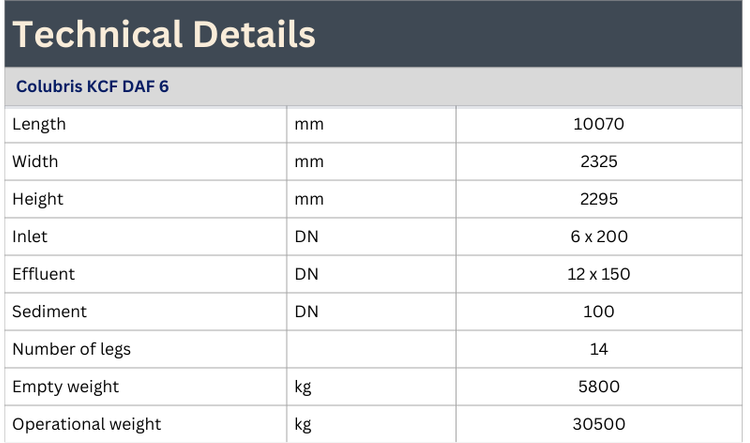

*Other sizes within the KCF series are available to suit different flow capacities.
Optional Configurations for the KCF DAF
💧 Automatic micro-bubble diffuser cleaning system – guaranteeing clog-free operation
💧 Construction materials other than standard AISI 304
💧 Stainless-steel hinged cover
DFS Process Solutions supplies and supports the Colubris KCF Dissolved Air Flotation Unit as part of our integrated wastewater treatment offering for the food processing industry.
Enquire below for further information.
